BMI-S-207 RF shielding

Model NO.: KGI-S-207

Quantity:

Product Description
Application Description

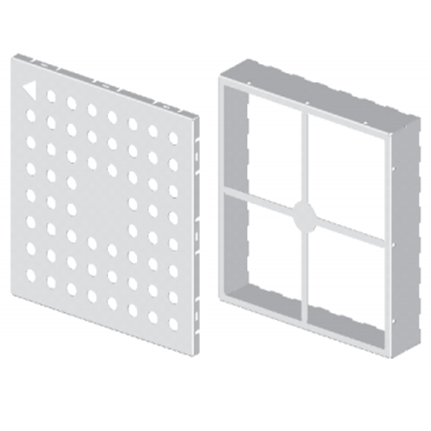

Standard Surface Mount Shield

BMI series is the standard,off the shelf shield in KGI,no tooling cost or tooling lead time required.

Part Numnber	Overall Length	Overall Width	Overall Height	Parts /reel	Tape Width	Material
BMI-S-201F,BMI-S-201C	0.538(13.66)	0.476(12.10)	0.100(2.54)	1000	24mm	0.2mm CRS Tin
BMI-S-202F,BMI-S-202C	0.650(16.50)	0.650(16.50)	0.142(3.60)	700	32mm	0.2mm CRS Tin
BMI-S-203F,BMI-S-203C	1.032(26.21)	1.032(26.21)	0.200(5.08)	300	44mm	0.2mm CRS Tin
BMI-S-204F,BMI-S-204C	1.260(32.00)	1.260(32.00)	0.236(6.00)	225	44mm	0.2mm CRS Tin
BMI-S-205F,BMI-S-205C	1.500(38.10)	1.000(25.40)	0.236(6.00)	250	44mm	0.2mm CRS Tin
BMI-S-206F,BMI-S-206C	1.450(36.83)	1.326(33.68)	0.200(5.08)	300	56mm	0.2mm CRS Tin
BMI-S-207F,BMI-S-207C	1.747(44.37)	1.747(44.37)	0.384(9.75)	120	56mm	0.2mm CRS Tin
BMI-S-208F,BMI-S-208C	1.559(39.60)	1.559(39.60)	0.276(7.00)	200	56mm	0.2mm CRS Tin
BMI-S-209F,BMI-S-209C	1.156(29.36)	0.728(32.00)	0.275(7.00)	400	56mm	0.2mm CRS Tin
BMI-S-210F,BMI-S-210C	1.732(44.02)	1.201(30.50)	0.118(3.00)	450	56mm	0.2mm CRS Tin

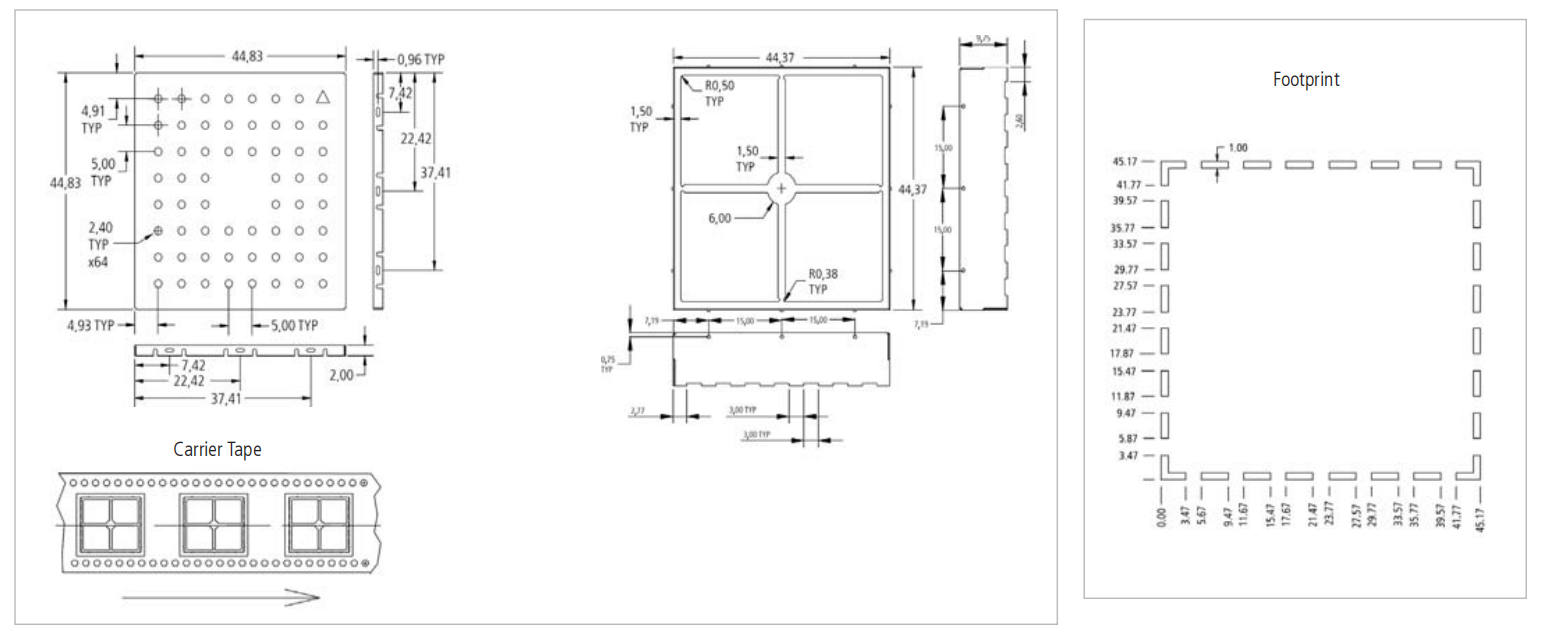

BMI-S-207

Package Option

Tape and reel package for shield frame.

It include carrier tape,cover tape, and reel.
Standard tape width: 8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm, 72mm, 88mm.

Standard reel size,7", 13"15"

Vacuum bag with desiccant is avaible if need,it's usually for tin plated steel which is easy to be oxided on cut edge.

Tray package for shield cover.

Packaging in tray is a most effective way of protect shield cover from scratch,also protect shield from deformation during transportation,another hand tray package is good on package space saved then save your shipping cost.

Tray pocket can be customized as per the shape of shield,also near hundreds style standard tray for your option.
