Model NO.
KGI-002C
Quantity:

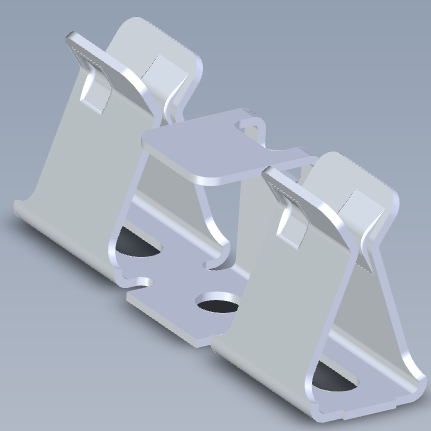

Shield Clip

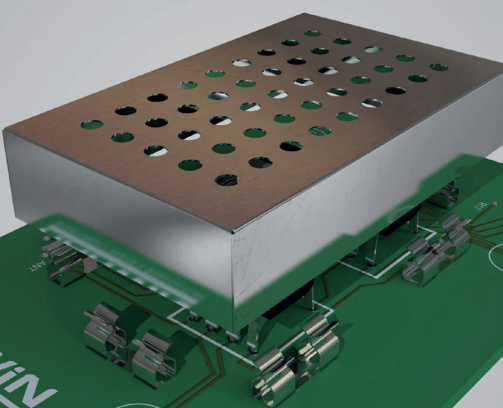

Shield clip is a effective way which install board level shield onto PCB,it allowed repeated installation and and uninstallation.











Standard Shield Clip
There some standard shield clip in KGI which allowed ship in short lead time and without tooling cost.





Package Option

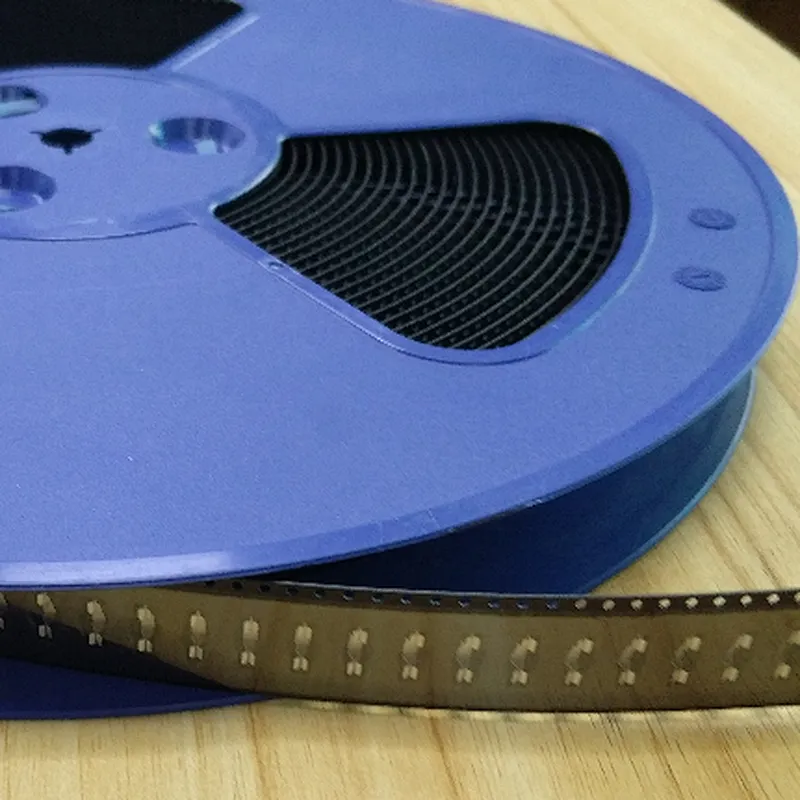

Tape and reel package for shield frame and shield clip.


It include carrier tape,cover tape, and reel.
Standard tape width: 8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm, 72mm, 88mm.

Standard reel size,7", 13"15"

Vacuum bag with desiccant is avaible if need,it's usually for tin plated steel which is easy to be oxided on cut dege.

Popular Material Popular Thickness
Nickle Silver 0.2mm
0.25mm
0.3mm
0.5mm
Tin Plated Steel 0.2mm
0.25mm
0.3mm
0.5mm
Stainless Steel 0.2mm
0.25mm
0.3mm
0.5mm
Copper Alloy 0.2mm
0.25mm
0.3mm
0.5mm
