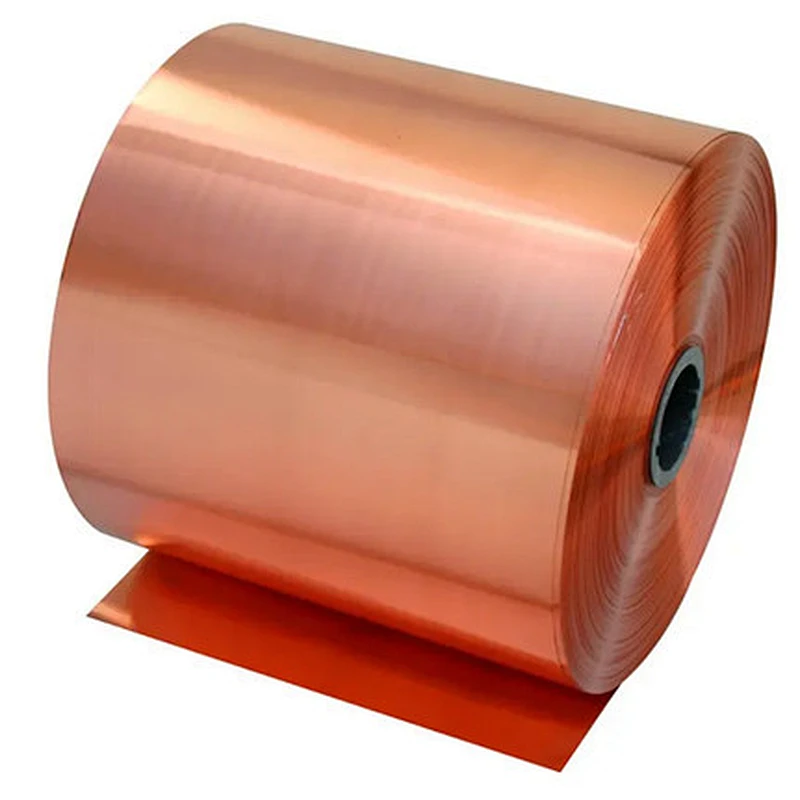

Why Pre-plated tin material?
Stainless steel is with similar shielding effectiveness of nickle silver but cost is lower a lot then nickle silver,only one serious problem the solderability of stainless steel is really bad.
Tin plated based on stainless steel material solve solderability successfully,however post tin plated has risk that deform the shield and cost is high,it have to be pre-plated which is make tin plated on raw material of stainless steel.
Pre-plated material is also available for any other material.
PCB Interface Option
KGI can offer all kinds of style board level shield,final style depend on your PCB interface.
Package Option
Stainless steel is with similar shielding effectiveness of nickle silver but cost is lower a lot then nickle silver,only one serious problem the solderability of stainless steel is really bad.
Tin plated based on stainless steel material solve solderability successfully,however post tin plated has risk that deform the shield and cost is high,it have to be pre-plated which is make tin plated on raw material of stainless steel.
Pre-plated material is also available for any other material.
PCB Interface Option
KGI can offer all kinds of style board level shield,final style depend on your PCB interface.
Package Option

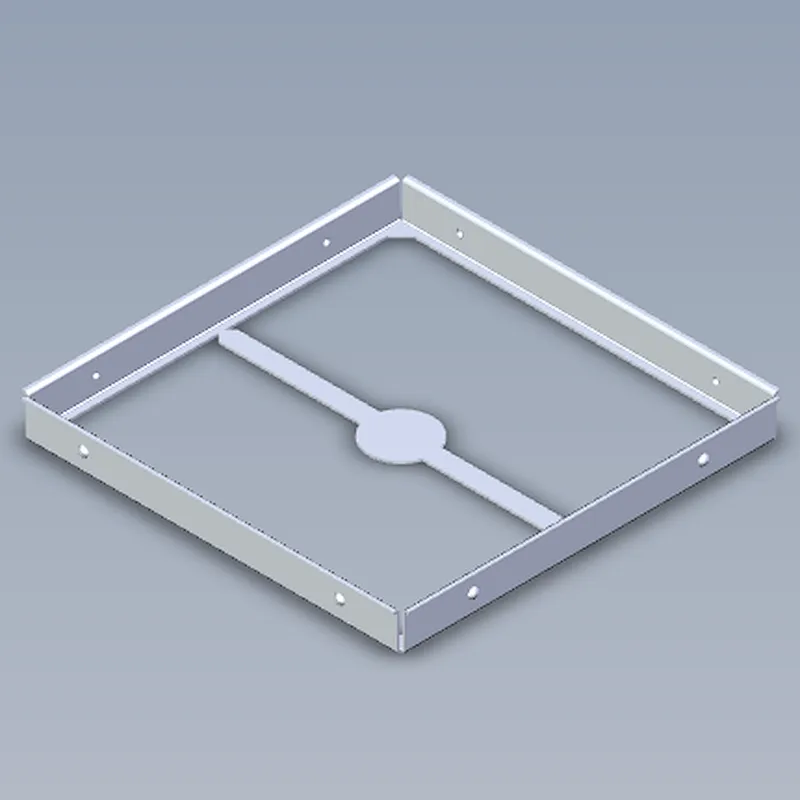

Tape and reel package for shield frame.
It include carrier tape,cover tape, and reel.
Standard tape width: 8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm, 72mm, 88mm.
Standard reel size,7", 13"15"
Vacuum bag with desiccant is avaible if need,it's usually for tin plated steel which is easy to be oxided on cut edge.
Tray package for shield cover.
Packaging in tray is a most effective way of protect shield cover from scratch,also protect shield from deformation during transportation,another hand tray package is good on package space saved then save your shipping cost.
Tray pocket can be customized as per the shape of shield,also near hundreds style standard tray for your option.
